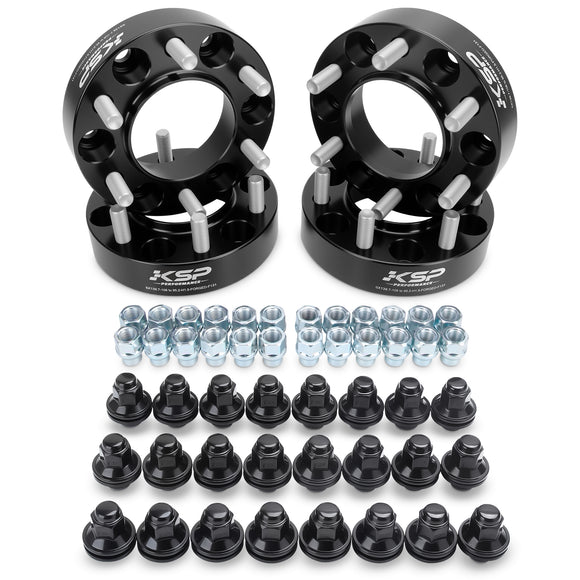

New Toyota Wheels on Previous Toyota Trucks Wheel Adapter with M14x1.5 Black Lug Nuts1.5 inch Hub-centric | Tacoma 4Runner | 12x1.5 Studs to 14x1.5 Wheels

• KSP Wheel Adapters let earlier-generation Toyota vehicles run newer-model Toyota wheels. Once installed, these Pro Billet adapter spacers convert M12×1.5 studs to M14×1.5 and use a purpose-engineered thickness that fits the majority of Toyota trucks. The added track width increases tire clearance to help prevent contact with frame rails and suspension links at full lock.
• New Toyota wheels/rims use 14x1.5 lug nuts, while the previous-generation trucks and SUVs come with 12x1.5 lug nuts, which are not compatible.

Vehicle

New Toyota Wheel

• Vehicle Center Bore (Spacer Inner Bore): 106.0 mm
• Wheel-Side Hubcentric Lip (Spigot Diameter): 95.2 mm
• Wheel Bolt Pattern: 6x5.5"/6x139.7mm
• Thickness: 1.5"(38mm)/pc
• Thread Pitch: M14×1.5
• Hex Size: 21mm（13/16"）
• Quantity: 4 pcs wheel spacers and 24 pcs lug nuts

Wheel Spacers:

• Install M14 x 1.5 Wheels on M12 x 1.5 Toyotas.
• Increase tire clearance to keep tires from crashing into frame rails and suspension links at full turn when vehicle lifted or larger tires changed.
• 6061 T6 Aircraft Aluminum forged Spacers are more heavy duty and durable than casting.
• CNC precision machining and professional dimensions to ensure the best fitting.
• ISO/DIN 10.9-12.9 grade bolts/Studs ,SCM435 steel material heat treated to avoid breaking.

Lug Nut:

• One-piece Lug Nut are more durable and will not expand and crack like the original (vehicle) ones.
• High-quality surface treatment that can withstand a 72-hour salt spray test duration.
• High Quality Chrome can Greatly Improves Rust&Corrosion Resistance and Prevent the Outer Layer Peeling Easily.

Q: Can I still use my original (older-generation) wheels with these adapters?

• A: No. KSP adapters are specifically designed to allow earlier-generation Toyota vehicles to install newer Toyota wheels. Older wheels with 12×1.5 lug nuts do not require these adapters.



Q: Why do I need these adapters?

• A: Because they allow you to upgrade your earlier-generation Toyota vehicle to install newer-model Toyota wheels securely and safely.



Q: Are these adapters safe to use?

• A: Absolutely. KSP Pro Billet adapters are made from high-strength billet aluminum with CNC precision machining and use ISO/DIN grade hardware to ensure a strong, vibration-free installation.



Instruction for Wheel Spacers
