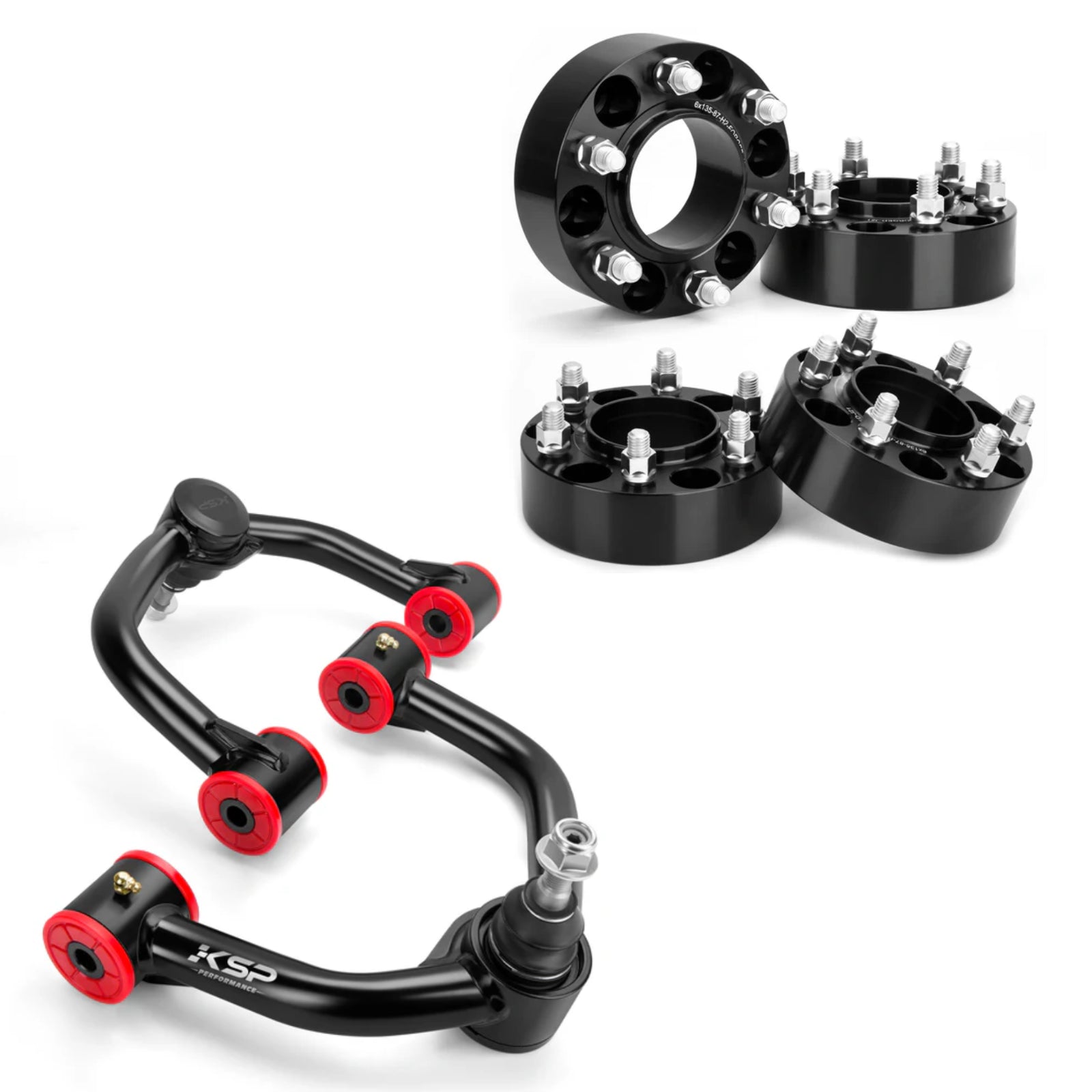

The KSP Upper Control Arm is designed to fit Ford F150 and correct the ball joint angle for front leveling kits ranging from 2" to 4". These Upper Control Arms are made from solid Q235 Carbon Steel Plate, ensuring high strength through the use of a high-strength argon arc welding process. F150 Upper Control Arm is constructed from 1.25" DOM Tubing and MIG Welded, bring improved driving dynamics, handling characteristics, and suspension articulation. The Upper Control Arms from KSP feature POM ball joints, allowing for a greater range of motion and increased wheel articulation compared to standard or OE replacements.
KSP 2 inch forged Pro Billet Wheel Spacers give your 2004-2014 Ford F150 a more aggressive look and increase tire clearance, preventing tires from hitting frame rails and suspension links during full turns, especially with a lift or larger tires.
| Years | Make | Model |
|---|---|---|
| 2004-2014 | Ford | F150 |
Don't fit Raptor model
Does not fit models with dually setup
Does not fit F150 HD
Note：Conservative stock wheels (ET44) will cause the tire rub the control arm, requiring at least 1.5-inch thick wheel spacer or a 0 offset aftermarket wheel

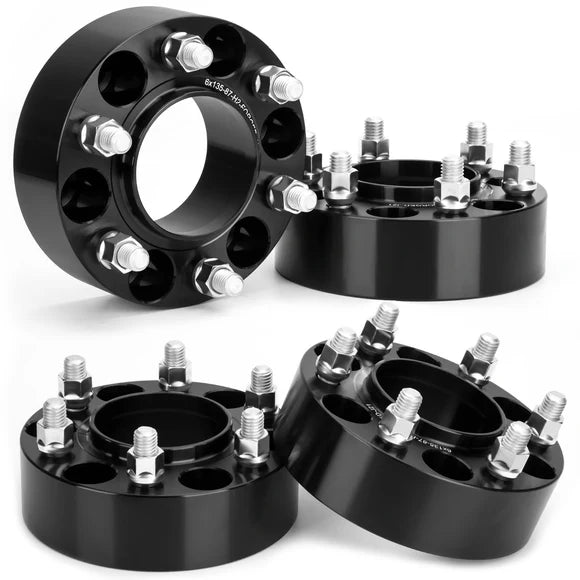

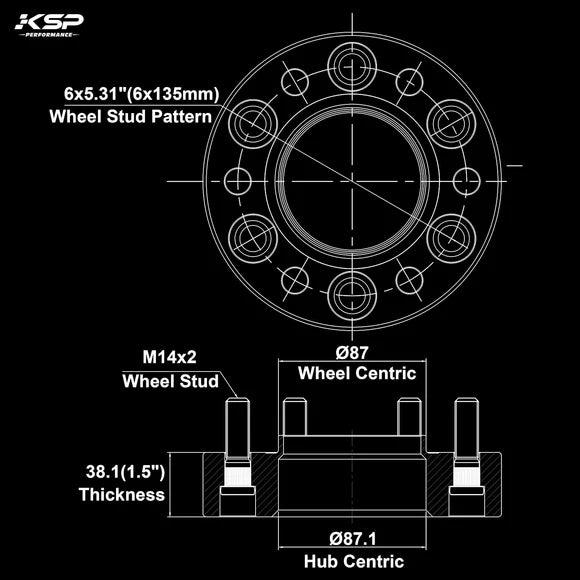

1.5" 2" 6x135mm Wheel Spacers
- Vehicle Bolt Pattern: 6x135mm
- Wheel Bolt Pattern: 6x135mm
- Hub/Center Bore: 87.1mm Center Bore with lip
- Thickness: 2 inches
- Thread pitch: M14x2/14mmx2/14-2.0mm
- Quantity: 4pcs
Upper Control Arms (2-4")
- Change the angle of tubular, so it will reduce rubbing
- Special design for the head of ball joint spindle can help you install and disassemble
- DOM TUBER ARMS will fit your F150 lifted truck well
- PROBLEM SOLVER GUSHER BEARING: Metal-To-Metal provides strength and allows grease to flow through bearing surface for reducing friction and providing longer life
- GREASEABLE SOCKET: Reduces corrosion and wear by allowing new lubricant to flush contaminants
- KEEPS DIRT AND WATER OUT: Pre-installed dust boot shields socket components from wear-causing contaminants
- Polyurethane bushing for driving performance and longer service life.
- Constructed from 1.25" DOM tubing for superior strength and durability
- High quality dust cover of ball joint supply longer service life
- Corrects geometry for proper alignment and improved handling
- Powder coated finish
- Lifetime warranty for tubular arms and one-year warranty for ball joints and bushings
- Included 2 upper control arms, 8 Poly Bushings, 4 sleeves, 4 zerks andlubrication
1.5" 2" 6x135mm Wheel Spacers
- Give your vehicle a more aggressive appearance
- Improve the handling, stability and performance
- Increase tire clearance to keep tires from crashing into frame rails
- And suspension links at full turn when vehicle lifted or larger tires changed.

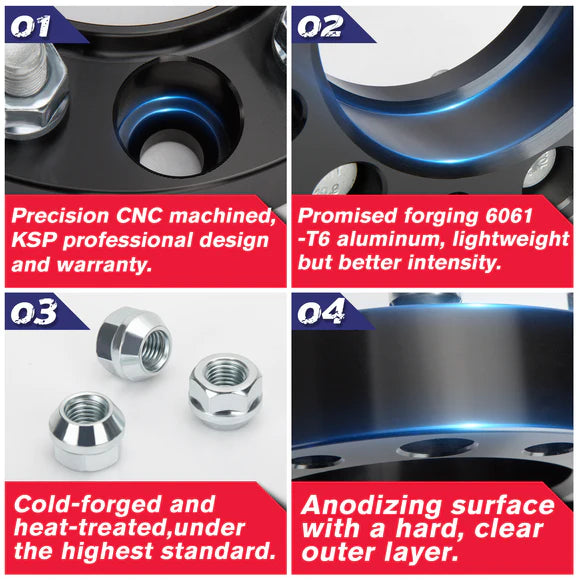

- 6061 T6 Aircraft Aluminum forged Spacers are more heavy duty and durable than casting
- CNC precision machining and professional dimensions to ensure the best fitting
- Perfectly Hubcentric Design is easy to install and eliminates chance of vibration
- ISO/DIN 10.9-12.9 grade bolts/Studs ,SCM435 steel material heat treated to avoid breaking
- Including: 4pcs Forged Wheel spacers; 24 super strong 10.9 grade open ended lug nuts; pro instruction manual.
1.5" 2" 6x135mm Wheel Spacers

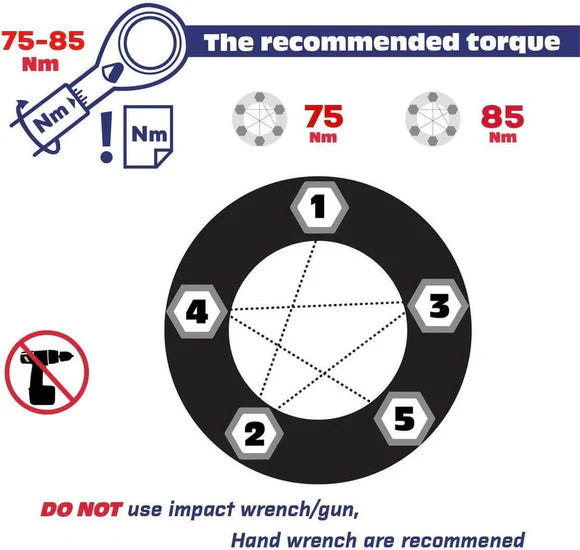

- Don’t use impact wrench
- Highly recommend Thread-Locking
- Professional installation is highly recommended
- Do the wheel balance before install the wheels
- Clean rust or dirt before installation
- Re-torque all lug nuts after 50-100 miles of driving ,then again after 2000-3000 miles
- Make Sure You Get 5-7 Turns Before Tightening
